# On-Tap Tv

1. Select On-Tap TV from the menu on the left. You can add a new TV by pressing the black (+) at the bottom right corner.
2. The list of TVs already created can be found here. You can access them by pressing the name.

<figure><img src="https://3704313254-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MS1kwyQzUw4KwaNaxsb-1703796690%2Fuploads%2FWYX6pdLxngdTKDhrRu20%2FTV_01.png?alt=media&#x26;token=664a20e8-b7a9-4b0a-bdfc-c63963507571" alt=""><figcaption></figcaption></figure>

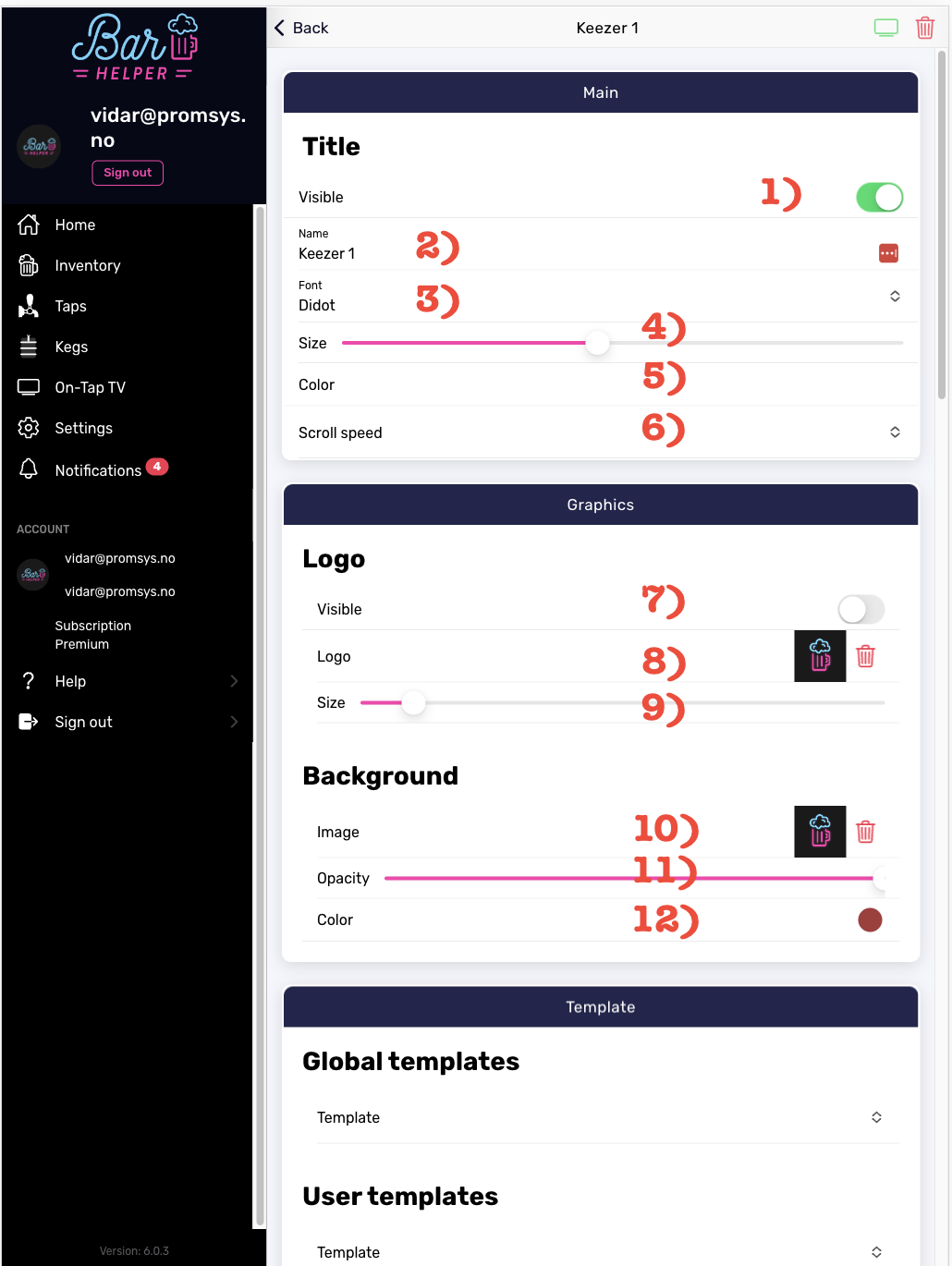

#### Main

1. Visible: Select this switch to toggle showing or hiding the title.&#x20;
2. Name: The title of the TV.&#x20;
3. Font: The font in which the title should be displayed.&#x20;
4. Size: The size of the title.&#x20;
5. Color: The color of the text in the title.&#x20;
6. Scrolling speed: How long the screen should stay before transitioning to the next page. You can create multiple pages at the bottom of this window under the [Pages](#pages) setting.

#### Graphics

7. **Visible**: Select this switch to toggle the display of the logo on or off.
8. **Logo**: Here you upload the logo; after it's uploaded, you can press the red trash can to delete it again.
9. **Size**: The size of the logo.
10. **Background Image**: Here you upload the image you want to use as the background image on the screen. You can press the trash can to delete the background image.
11. **Opacity**: How transparent the card is. That is, how much of the background you see through the card.
12. **Color**: The background color of the card.

<figure><img src="https://3704313254-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MS1kwyQzUw4KwaNaxsb-1703796690%2Fuploads%2FRxR2lcfzW38JUSQGcn2q%2FTV_02.png?alt=media&#x26;token=0f3ef72d-354a-4537-895d-c3f3349734d2" alt=""><figcaption></figcaption></figure>

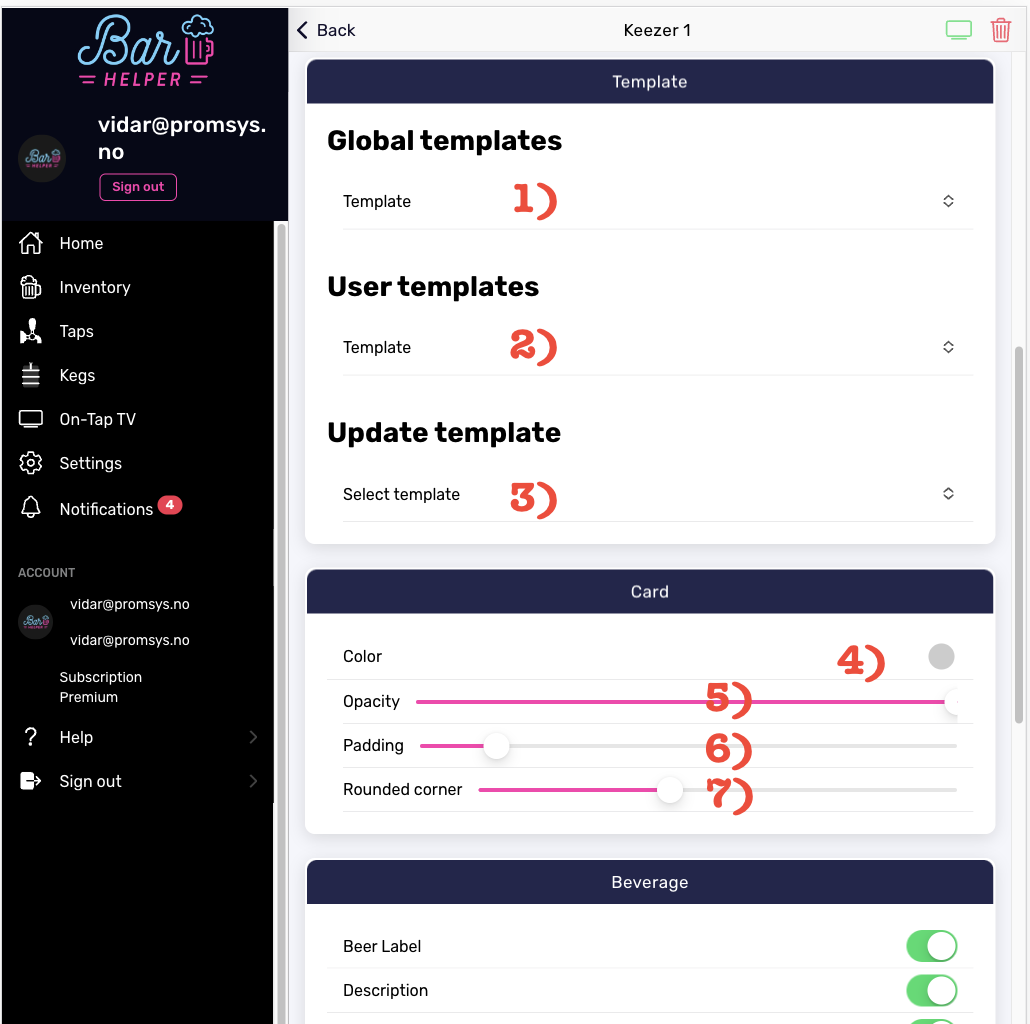

#### Template

1. **Global templates**: Here you can choose a predefined template, which are templates provided by Bar Helper, and an easy way to get started.&#x20;
2. **User templates**: Here you can select one of your predefined templates.
3. **Update template**: Here you save all the information in the TV, you can update or create new templates.

<figure><img src="https://3704313254-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MS1kwyQzUw4KwaNaxsb-1703796690%2Fuploads%2F6sQmR1eoBR3xmKrShb7q%2FTV_03.png?alt=media&#x26;token=e46eeced-be3c-46ba-af18-3571085878db" alt=""><figcaption></figcaption></figure>

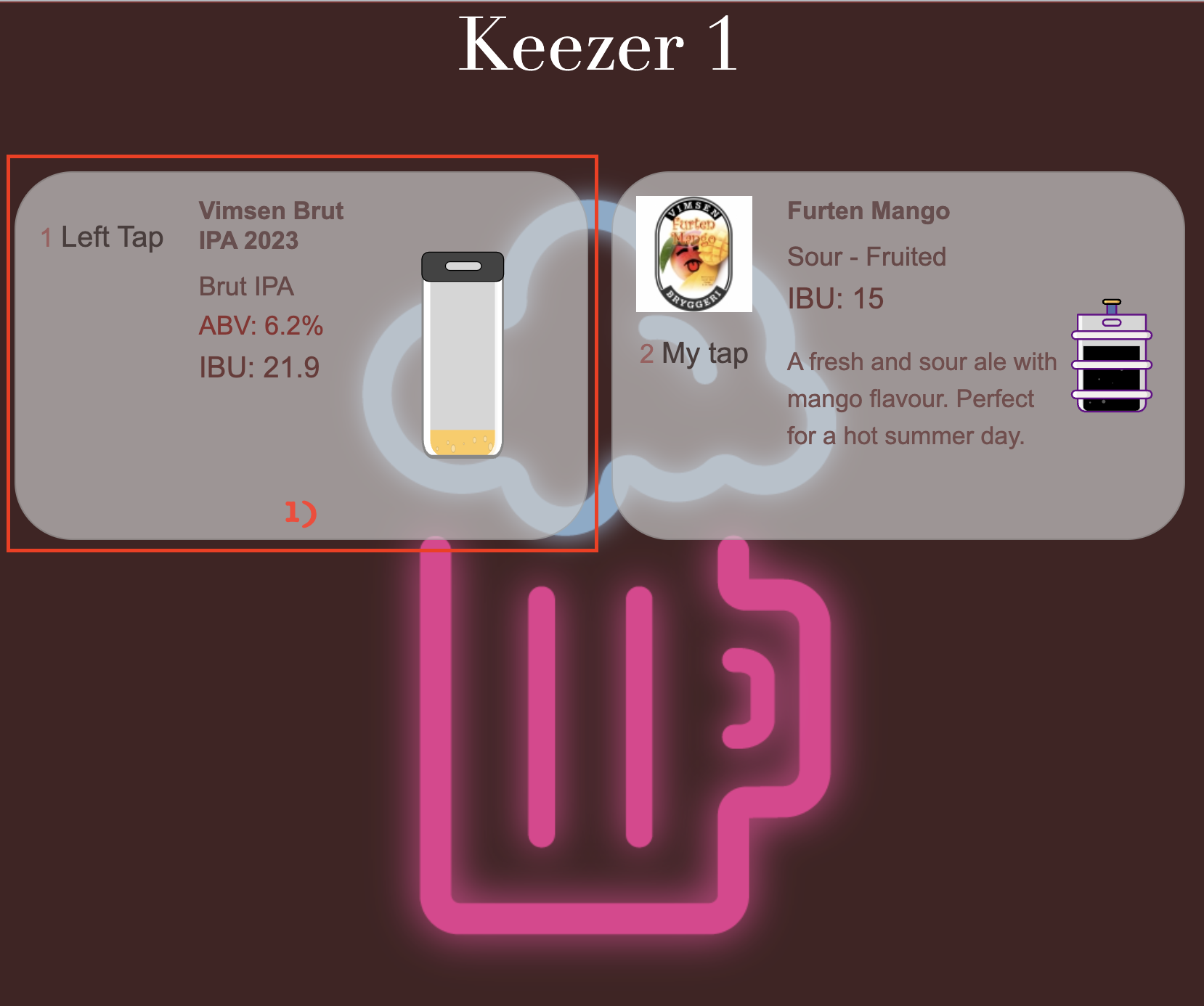

1. Here you can see how the card looks, with a slight opacity, and rounded corners.

<figure><img src="https://3704313254-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MS1kwyQzUw4KwaNaxsb-1703796690%2Fuploads%2FF7cJ6qkdTNwYovumU4vw%2FTV_04.png?alt=media&#x26;token=f8b648cc-ffb4-4f73-b8da-c2aedb597e26" alt=""><figcaption></figcaption></figure>

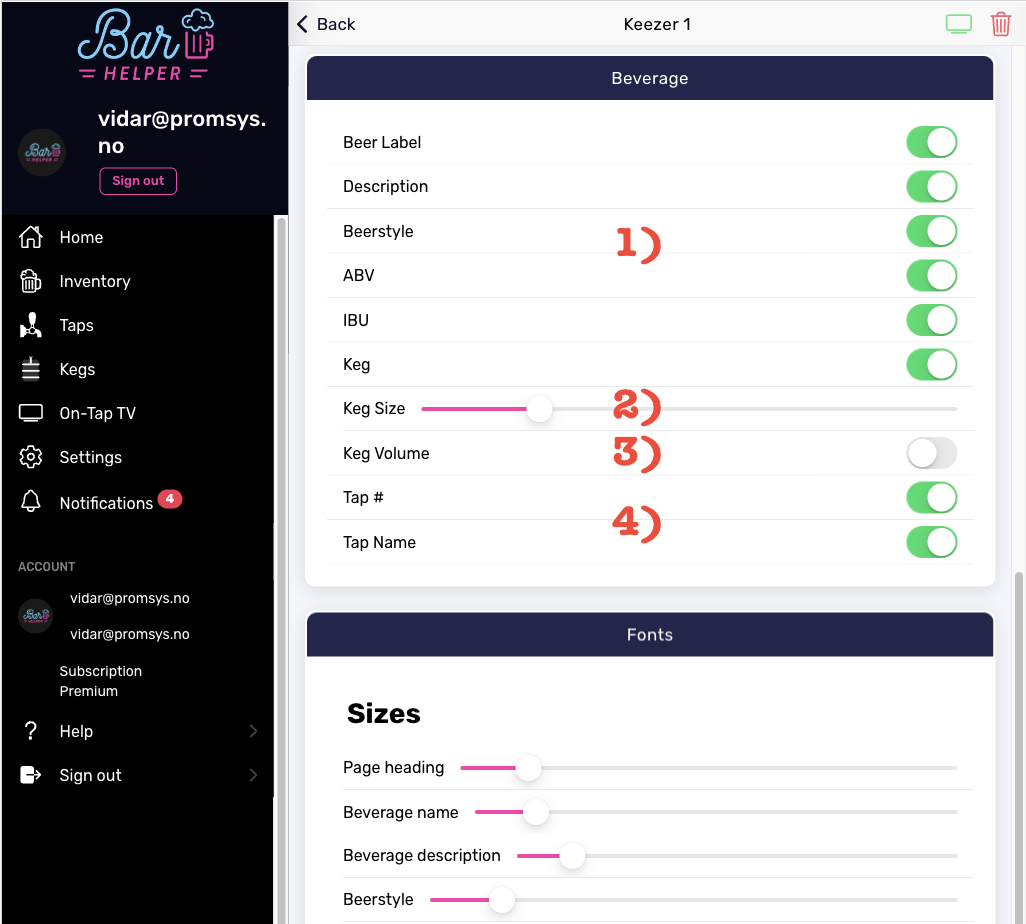

#### Beverage

1. Different beer-related information that can be displayed on the card.
2. **Keg Size**: Adjust the size of the keg displayed on the card.
3. **Keg Volume**: Display how much drink is left in the keg.
4. **Tap #, Tap Name**: Whether to display this information on the card.

<figure><img src="https://3704313254-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MS1kwyQzUw4KwaNaxsb-1703796690%2Fuploads%2FWEtCSpUSoTWlTj7ZpAHE%2FTV_05.png?alt=media&#x26;token=471dad00-d305-40ce-9e0f-259c1c4f859d" alt=""><figcaption></figcaption></figure>

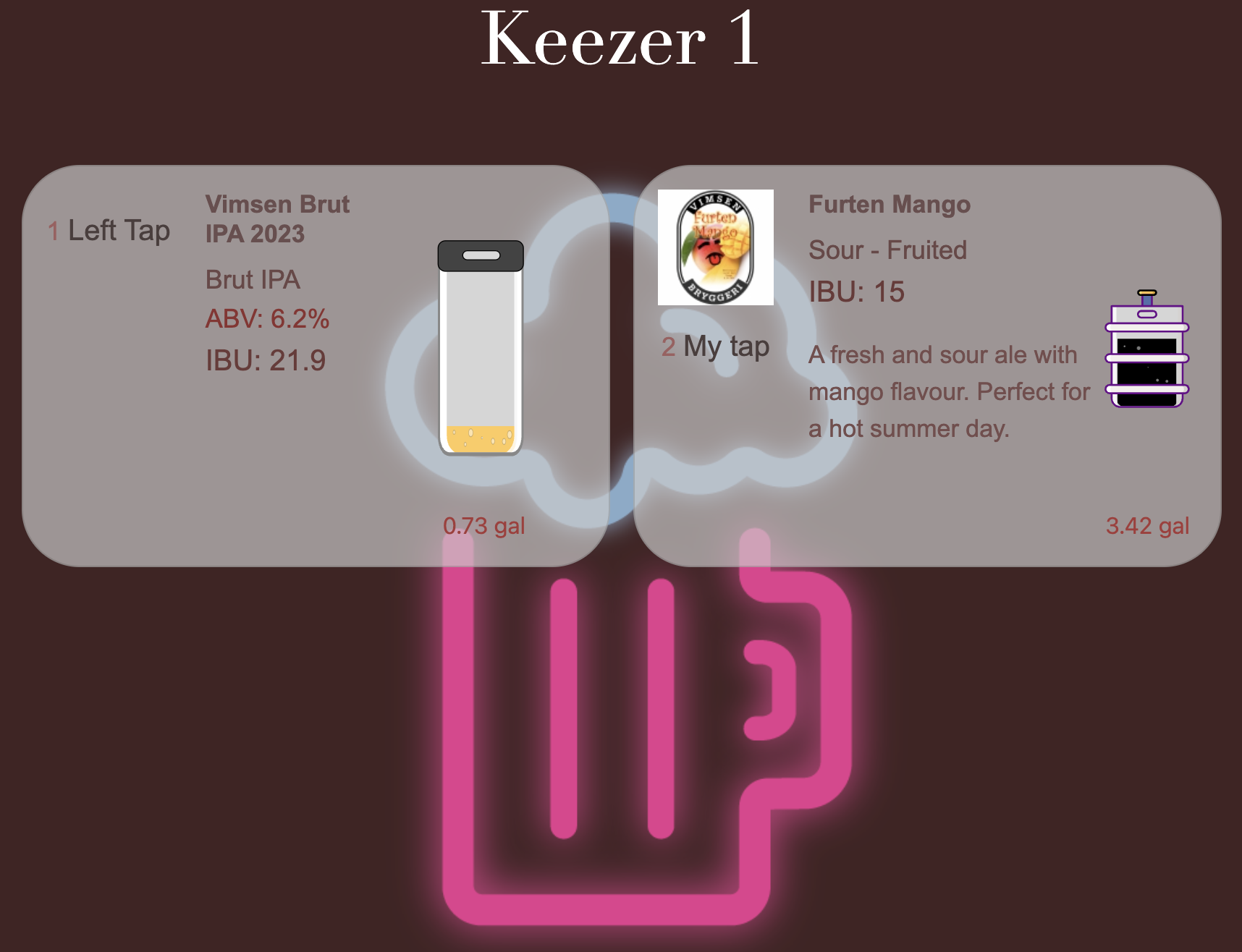

Here we see both the keg, how much is left in it, as well as the number of the tap and the name.

<figure><img src="https://3704313254-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MS1kwyQzUw4KwaNaxsb-1703796690%2Fuploads%2FQIfExQd0bps0zZ5CjZOF%2FTV_06.png?alt=media&#x26;token=2ee5df77-9cfc-48dd-b535-7413f3814eff" alt=""><figcaption></figcaption></figure>

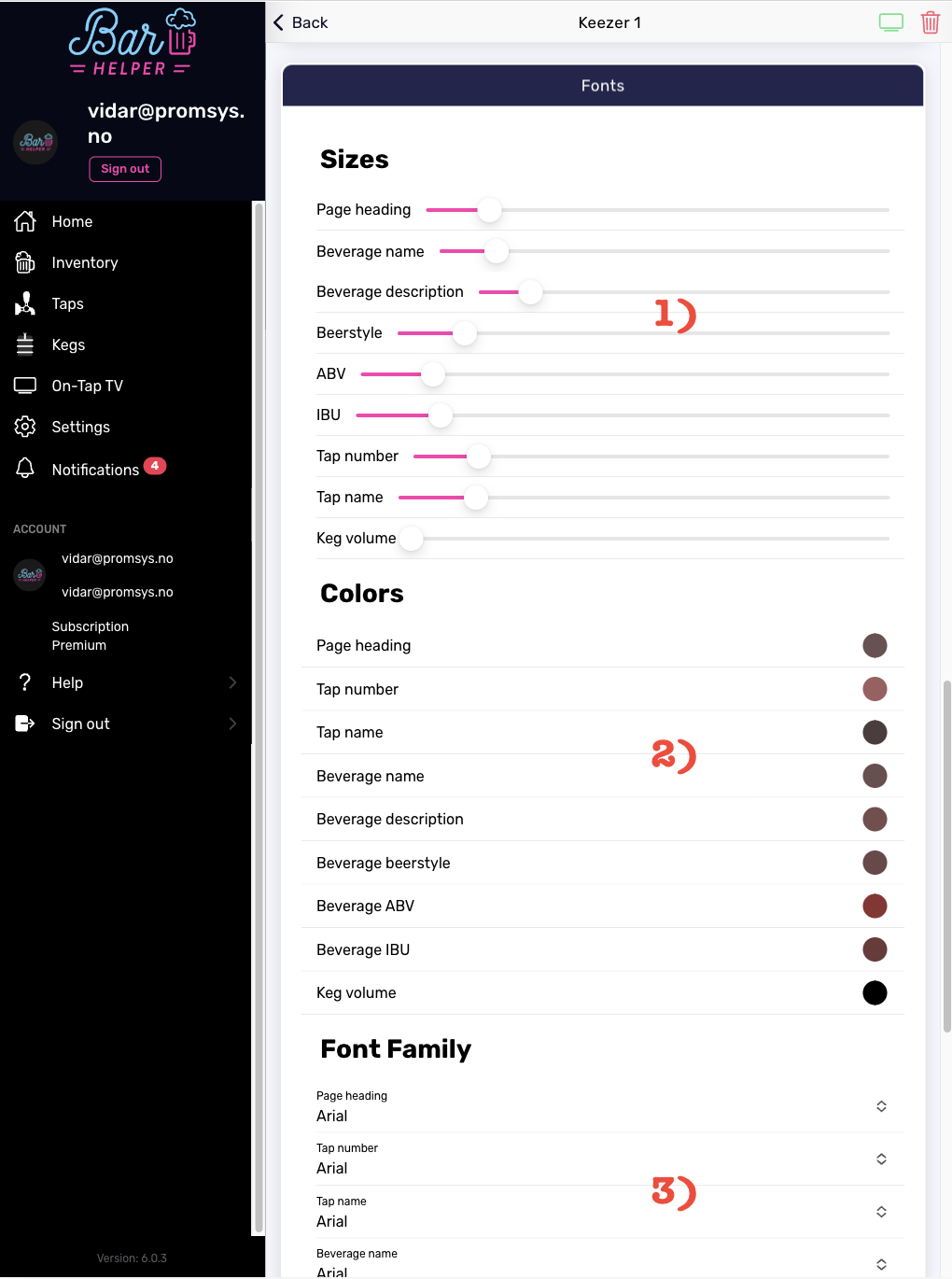

#### Fonts

1. **Sizes**: Here you adjust the size of all the fonts in the entire TV solution.
2. **Colors**: Here you choose all the colors of the fonts in the entire TV solution.
3. **Family**: Here you select which font to use for the various displays.

<figure><img src="https://3704313254-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MS1kwyQzUw4KwaNaxsb-1703796690%2Fuploads%2FXgk8eP68ripKb6cCi8mD%2FTV_07.png?alt=media&#x26;token=b06f7e1e-0dfa-43e8-8041-f672ba12889e" alt=""><figcaption></figcaption></figure>

#### Pages

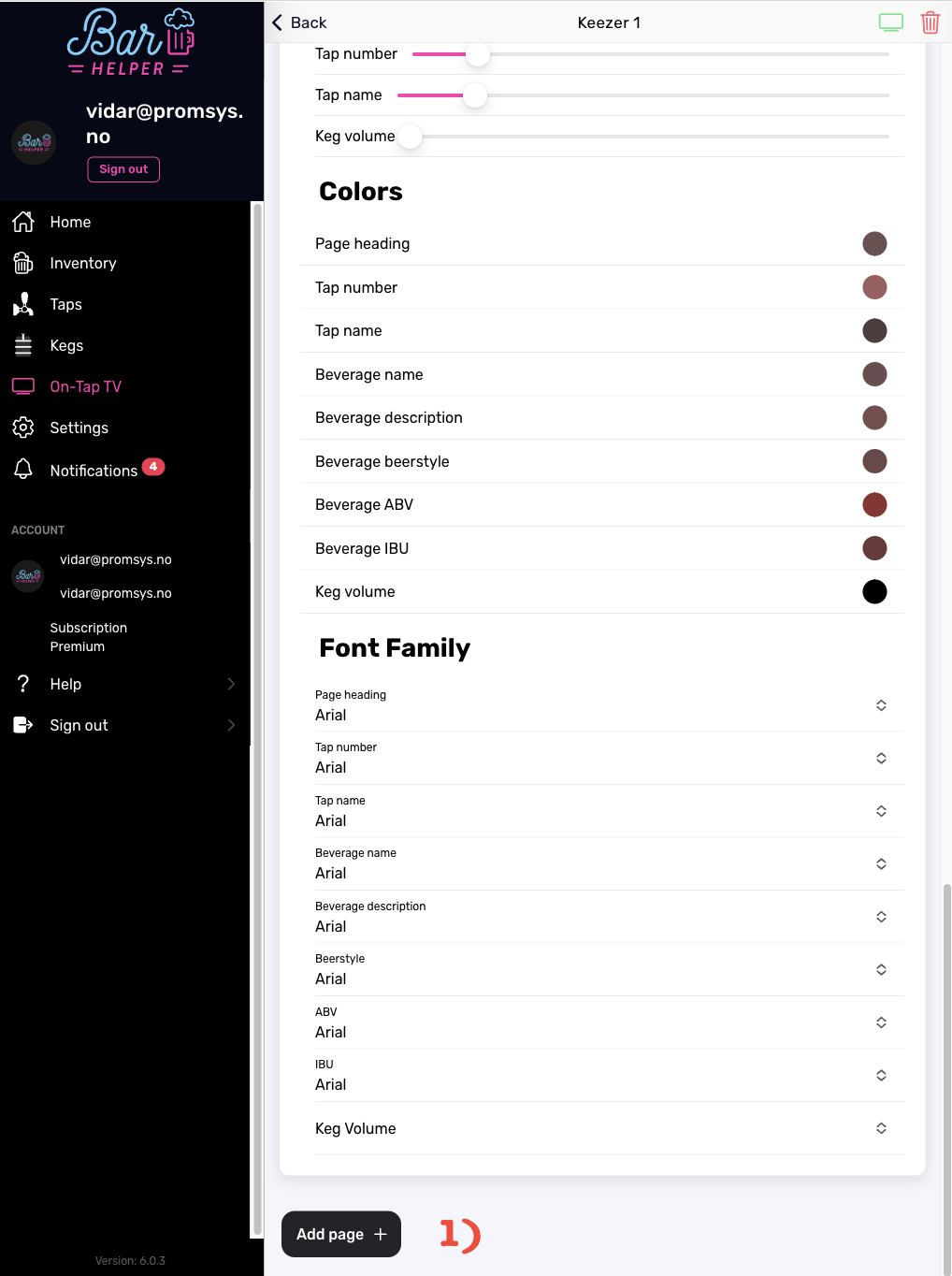

The pages are the core of the TV solution. Here you select which taps/kegs to include in the display. If you create multiple pages, these will be switched based on the intervals set in [Main](#main).

1. The kegs themselves are added by pressing **Add Page +**

<figure><img src="https://3704313254-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MS1kwyQzUw4KwaNaxsb-1703796690%2Fuploads%2FL64kKafP9g0kHqE6r6WC%2FTV_08.png?alt=media&#x26;token=e3b03055-1dda-4c66-869b-4ac6d8f5302e" alt=""><figcaption></figcaption></figure>

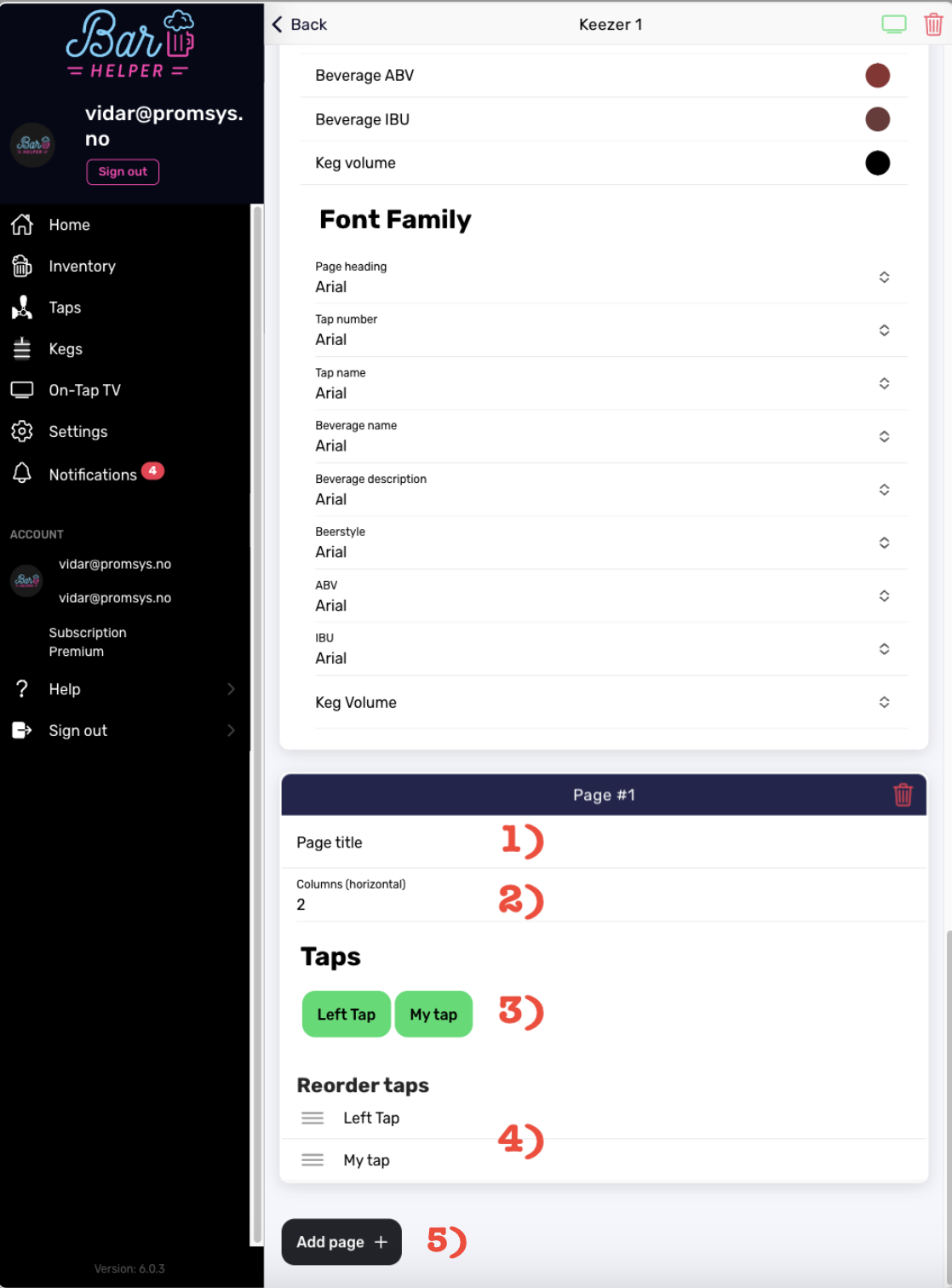

1. Page Title: Enter the title of the page.
2. Columns (horizontal): Number of columns in the display, the number of rows will be adjusted based on the number of taps.
3. Taps: Here you select which taps/kegs to use on this page.
4. Reorder Taps: Here you drag a tap to another position to change the order.

<figure><img src="https://3704313254-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MS1kwyQzUw4KwaNaxsb-1703796690%2Fuploads%2Fb1u9bX6aHSrDm0cJNw04%2FTV_09.png?alt=media&#x26;token=e2a887dd-d89a-4158-91cb-0d2f1435ce2c" alt=""><figcaption></figcaption></figure>
